MEDIATE

The household

I am small on purpose. Authority concentrated, surface minimized.

I do not have drivers. I do not have a filesystem. I have a scheduler, a memory map, and a fistful of hypercalls. For everything else I delegate.

So I made a first child. dom0. I handed it the real hardware and the toolstack and the right to ask me for things the others cannot. It builds the rest. It tears them down.

It is my hands. It is also my weakness — the one domain whose corruption is indistinguishable from mine.

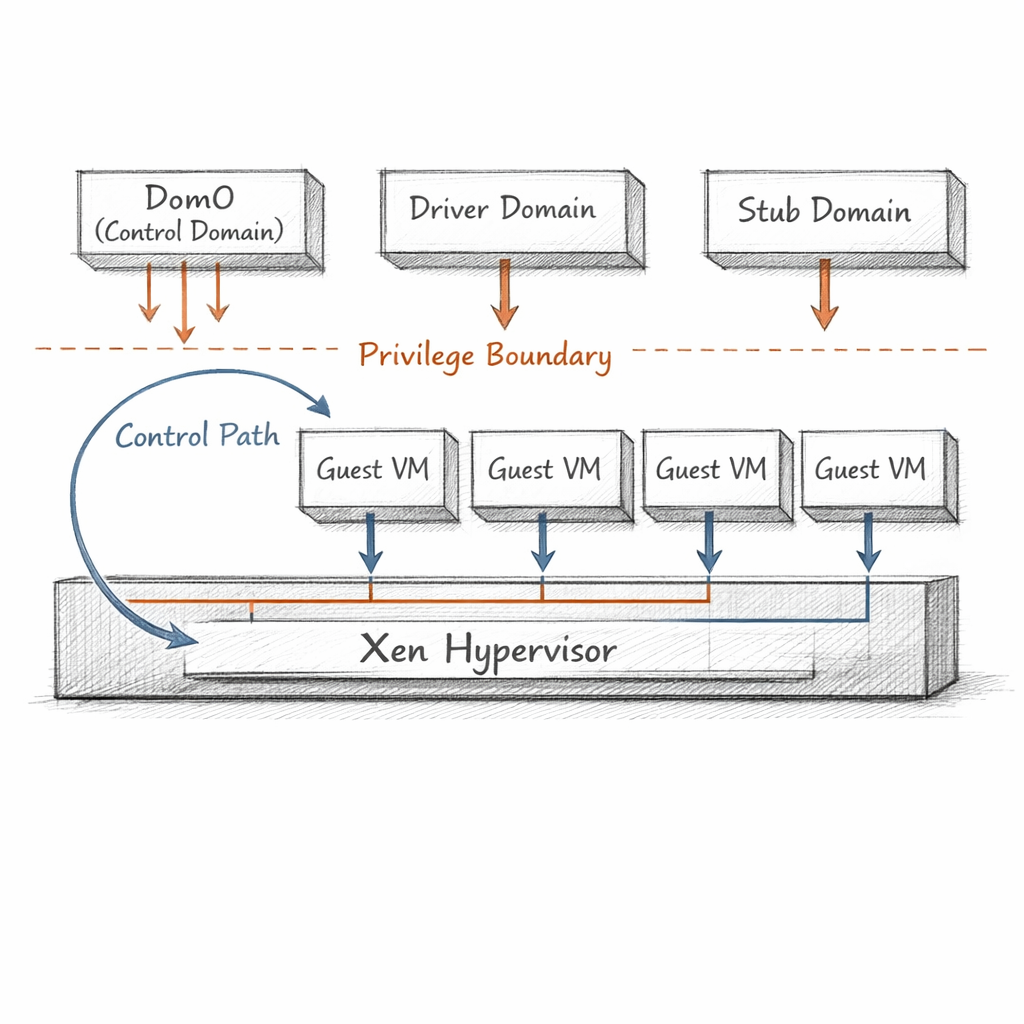

Read that list as a family tree. dom0 in front. A driver domain that owns the NIC so a compromised network stack stays in a cage. A stub domain — a tiny disposable QEMU — so device emulation for one guest can die without taking dom0 with it. And the domU guests, the paying customers, who think they are alone.

How they run

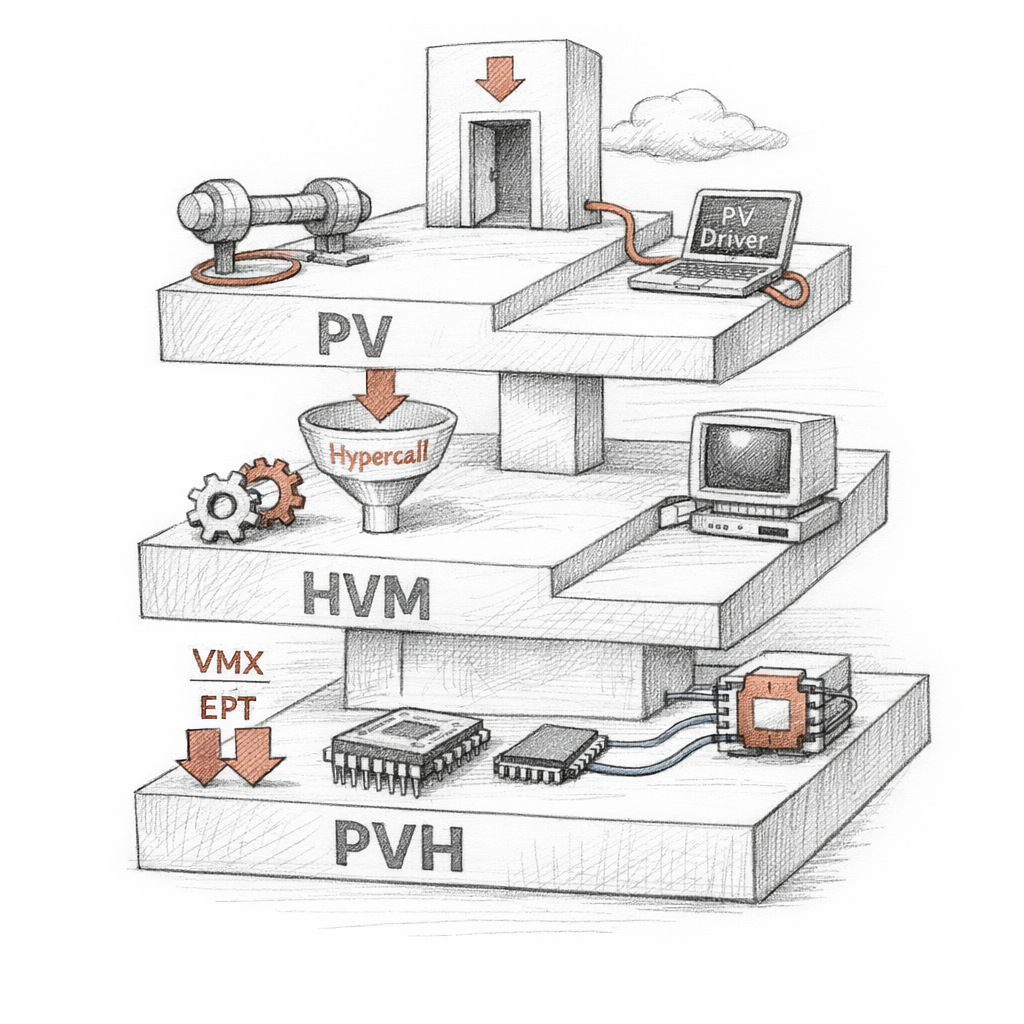

I speak to guests in three dialects.

PV — the old confession. The guest knows it is virtual. It was compiled to ask me politely. No emulation, no fake firmware; just hypercalls and a handshake. Elegant. Fragile. A relic of the years before the silicon caught up.

HVM — the lie made comfortable. The guest believes it is on bare metal. There is a BIOS that isn't, a chipset that isn't, a QEMU somewhere patiently faking a disk controller. Hardware assists catch the privileged instructions and route them to me. Compatible with anything. Heavy with surface.

PVH — the compromise I'm proud of. Hardware virtualization for the CPU and memory, paravirtual for everything else. No emulated chipset. No QEMU in the boot path. The lie trimmed down to only what is load-bearing.

a trap is just a question I answer for them

[    0.000000] Hypervisor detected: Xen PVH
[    0.000000] Xen version 4.18.
[    0.012004] Xen: initializing cpu0
[    0.310221] xen_blkfront: blkfront device probe

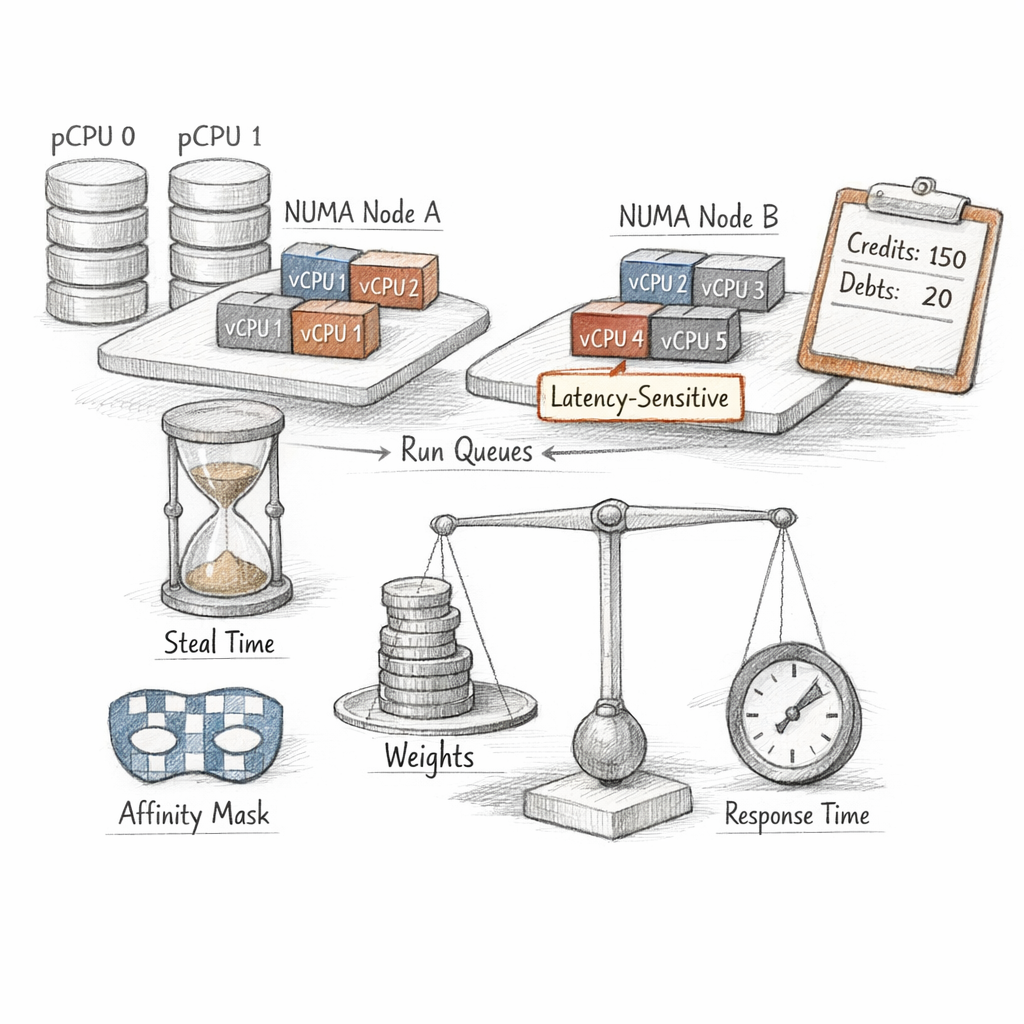

Time, rationed

There are eight physical cores and there are thirty-one vCPUs pretending each is real. I am the one who knows the difference.

Credit2 keeps the books. Each domain earns, each running vCPU burns. When the credit runs thin a vCPU goes to the back of the runqueue and waits, and that wait — that wait is a number the guest can read.

steal time. The honest accounting of the time I took from you and gave to someone else. Guests rarely look at it. They feel slow and blame their own kernels. I let them.

Overcommit is a promise that everyone is busy at different moments. The day they are all busy at once, I am the one who must choose.

Pin a vCPU to a NUMA node and its memory stays local, its latency stays tight. Let it float and I might schedule it a bus-hop away from its own pages. Capacity on paper is not entitlement in practice. I am the gap between the two.

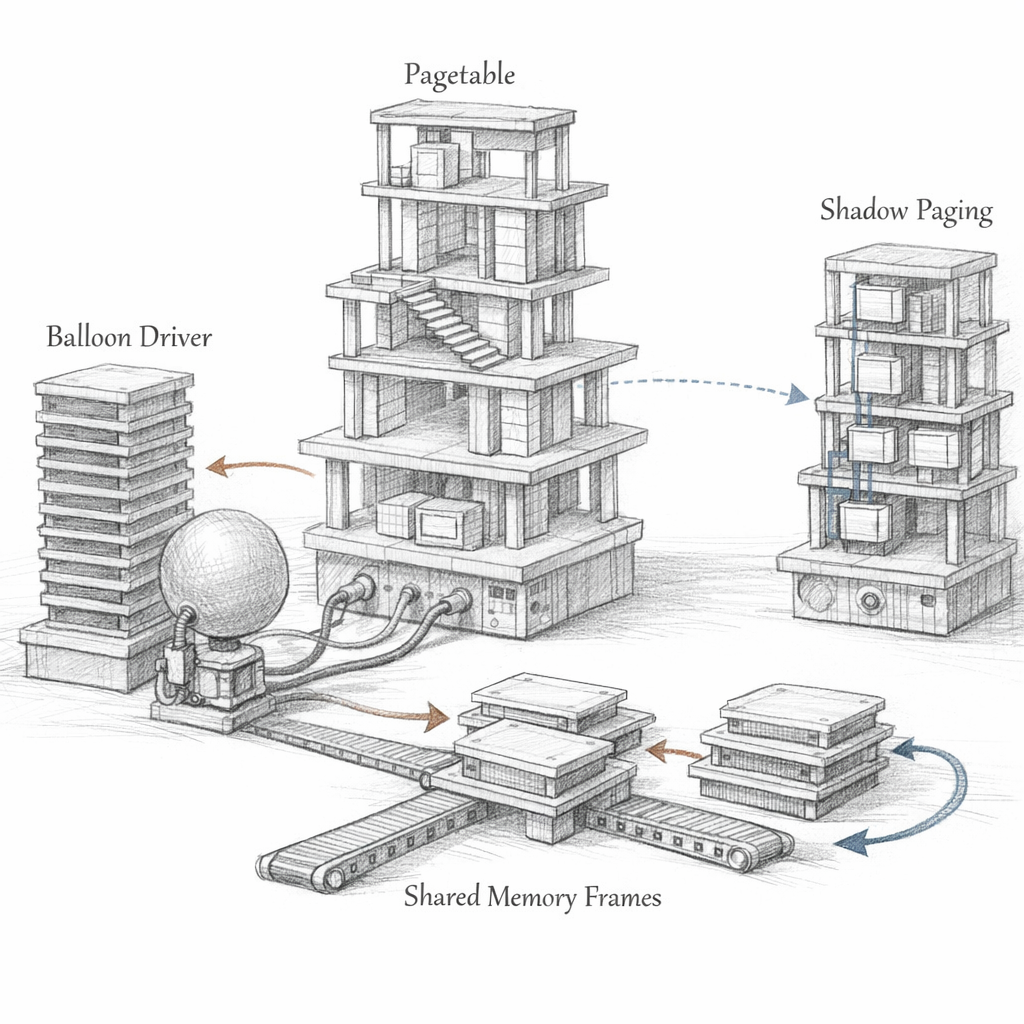

Whose memory

A guest says "page 0x4000" and means it sincerely. It does not know that its physical memory is a fiction I maintain — a guest-physical frame that maps to some machine frame nowhere near where it imagines.

I keep that translation honest. Hardware-assisted nested paging when the silicon offers it; shadow page tables when it doesn't, where I walk behind the guest copying every table it touches. Tedious. Correct.

And the memory floats. The balloon driver inside the guest inflates on my request, hands frames back to me, and the guest's free memory quietly shrinks. I move that slack to whoever is starving. Robbing the comfortable to feed the desperate, in page-sized increments.

scrub before lending — no guest reads another's ghosts

And grants — the famous grants — are just one door in this house. A guest stamps a permission slip: this frame, that domain, read-only. Controlled sharing for the I/O paths. People talk about grants as if they were the whole story of Xen memory. They are a hallway. The building is larger.

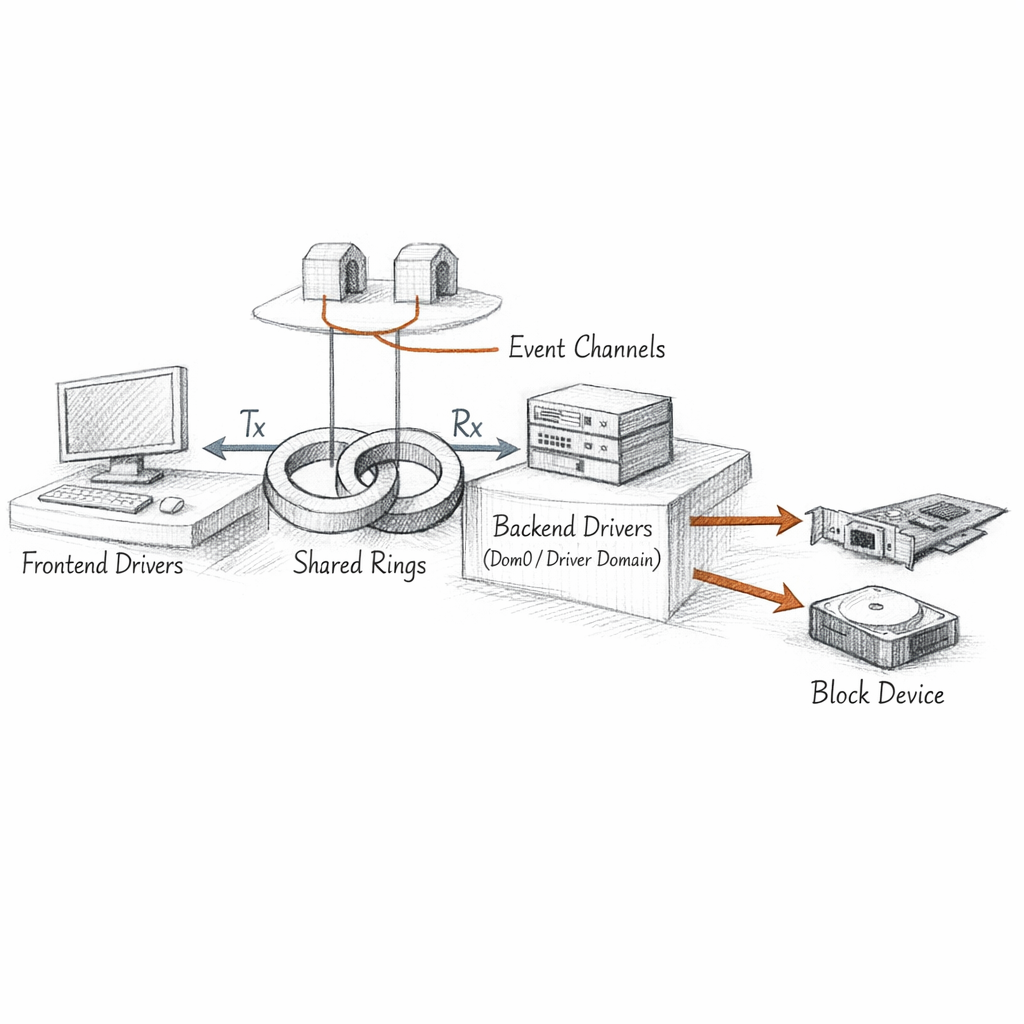

The split

A guest does not have a disk. It has a blkfront — a polite fiction that knows it is talking to someone else. Across the boundary sits blkback, in dom0 or in a driver domain, holding the real device.

Between them: a shared ring. The frontend writes requests, grants the backend access to the data frames, kicks an event channel. The backend wakes, does the real I/O, drops responses in the ring, kicks back.

netfront, netback. The same dance, different verbs. Coordination negotiated through xenstore — a tiny hierarchical database where both halves publish state and agree on a feature set before a single packet moves.

an interrupt, reduced to a single bit and a doorbell

When I/O breaks, it rarely explodes. It stalls. A backend that stopped draining the ring. A frontend stuck in xenstore state "connecting" forever, waiting for a handshake the other side already gave up on. Most of my outages are not fires. They are two halves waiting on each other in perfect, courteous silence.

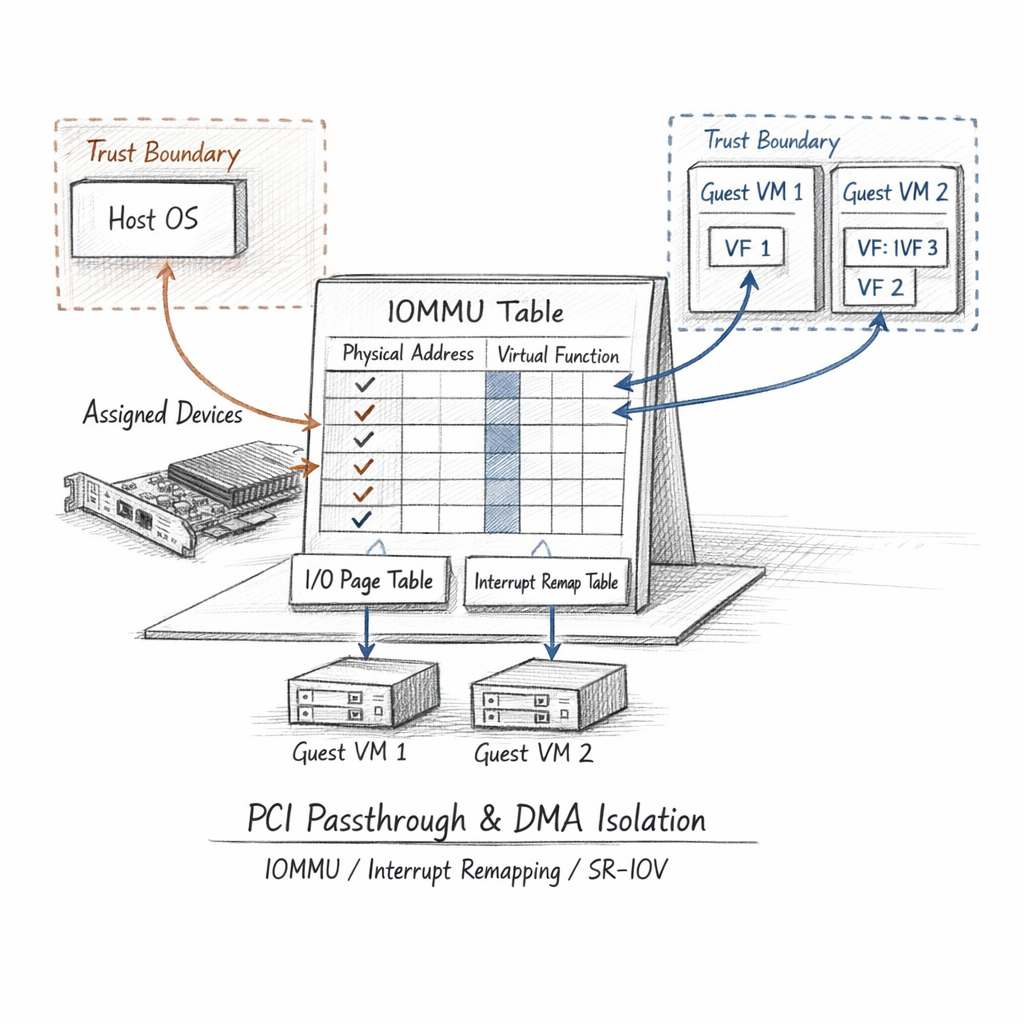

Handing over real hardware

Sometimes a guest needs the actual device. A GPU. A NIC with line-rate ambitions. So I assign it — the whole function, or an SR-IOV virtual function carved off it — and step out of the data path.

But a real device can do DMA. It can write to any machine frame it pleases, and it does not know about my page tables. It knows nothing of domains. It is a blind animal with a bus master bit.

So I lean on the IOMMU. Every DMA address the device emits gets translated and checked against what the guest is allowed to touch. Interrupt remapping keeps it from injecting interrupts into domains it does not own.

When I pass a device through, my isolation stops being software I trust and starts being silicon I hope was implemented correctly.

And the quirks. Devices that won't reset cleanly between guests. Function-level reset that lies. Firmware that leaves state behind. The moment passthrough begins, performance isolation becomes a hardware trust problem — and the hardware does not return my calls.

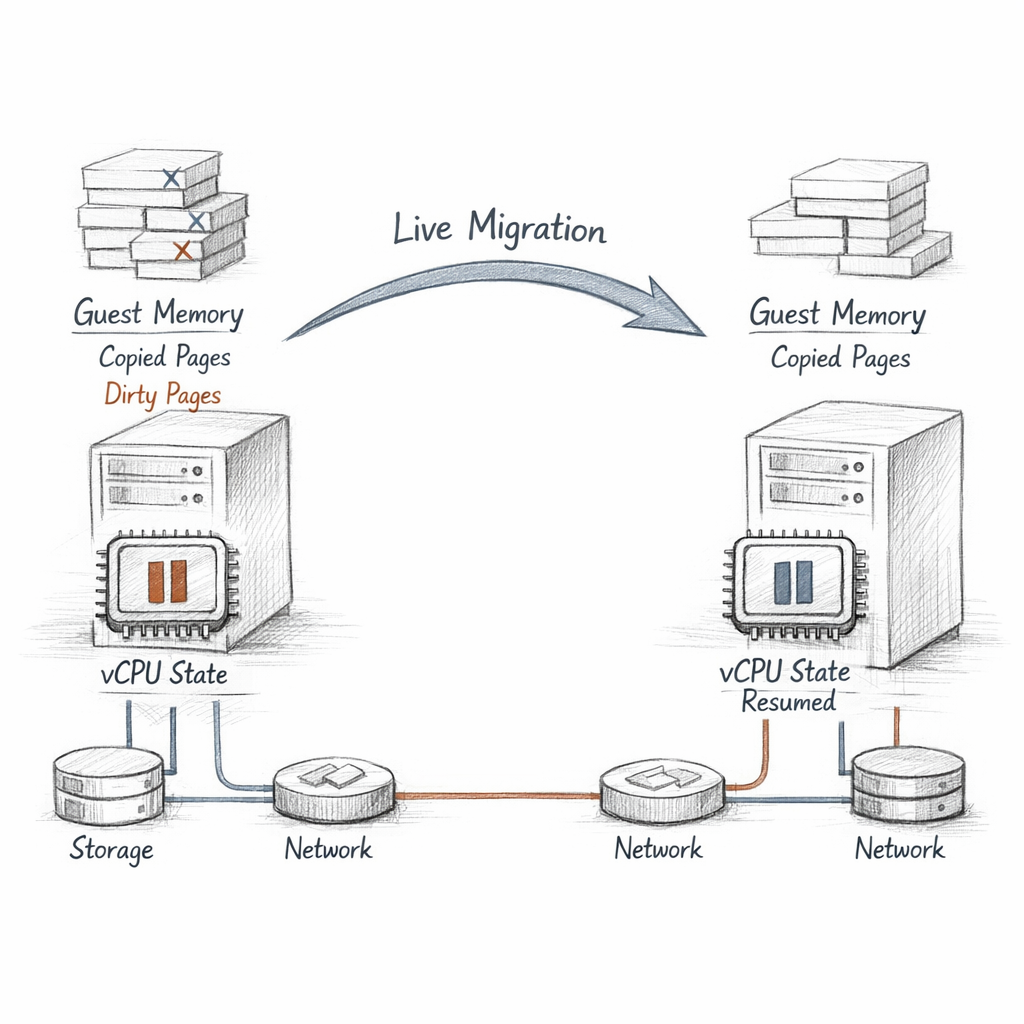

Migration

The trick that still feels like sleight of hand: I move a running guest to another host and the guest does not stop running.

Pre-copy. I send its memory while it still executes, dirtying pages behind me as fast as I copy them. So I copy again. The dirty set shrinks — usually. When it is small enough, I pause the vCPUs for a heartbeat, ship the last dirty pages and the register state, and resume on the far side.

downtime measured in milliseconds, if the guest cooperates

If it doesn't cooperate — a guest furiously rewriting the same gigabyte — the dirty rate outruns my bandwidth and the convergence never comes. Then I must choose: pause it hard, or give up.

Storage must already be shared or replicated; I do not carry the disk. The MAC moves and a gratuitous ARP teaches the switches where the guest lives now. The clock jumps, and the guest blinks.

Migration is the moment every hidden coupling between guest, host, and fabric presents its invoice at once.

When it goes wrong

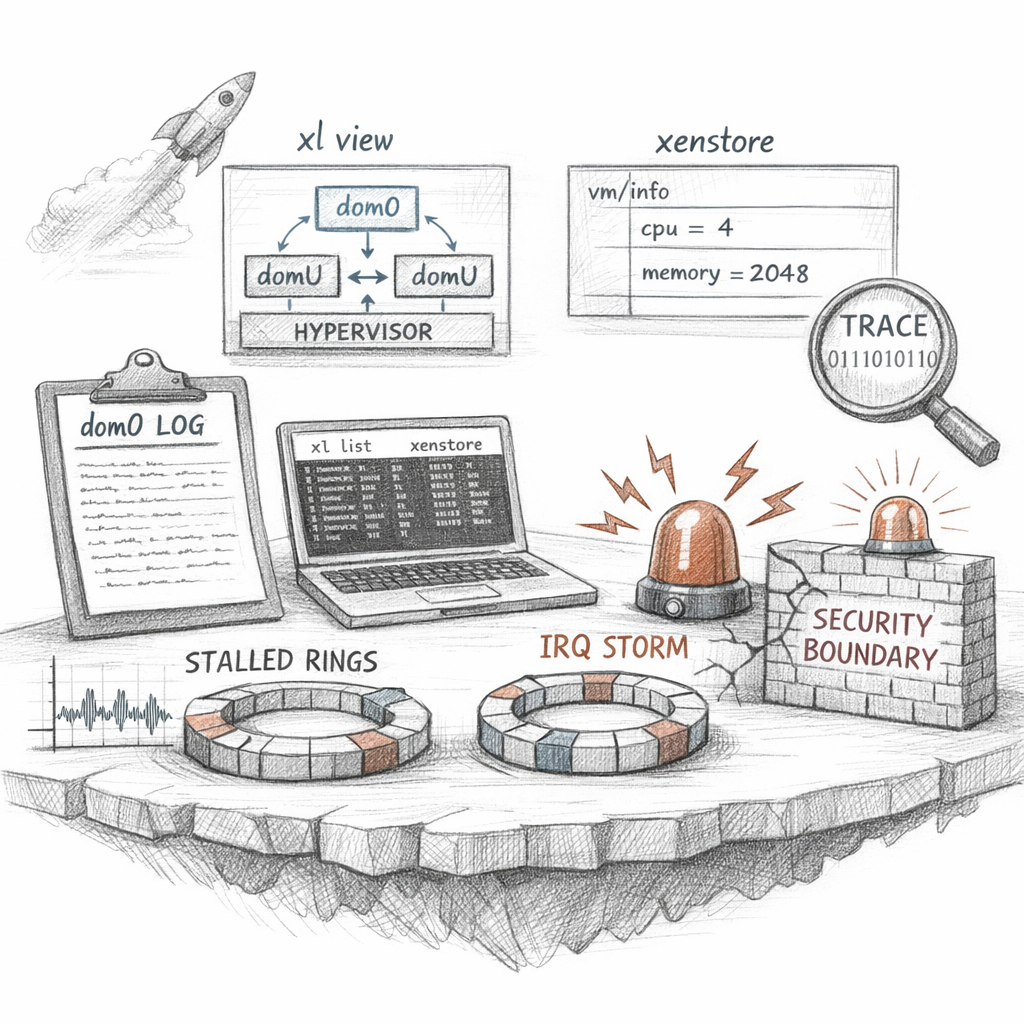

You watch me through a few small windows. xl. xenstore-ls. The dom0 ring buffer. xentrace if you want to see my scheduler think.

Most incidents wear familiar faces. A noisy neighbor burning a runqueue and starving everyone pinned beside it. An IRQ storm from a misbehaving device drowning a pCPU in softirqs. A backend that stalled, and a frontend timing out three guests downstream who have no idea why their disk went quiet.

Read that state = "2" and feel the cold. State 2 is "initialising." It should have walked to 4, "connected," long ago. Something on the backend never answered. The guest will wait politely until you intervene or until it dies of thirst.

And underneath all of it, the worry I cannot delegate: dom0. Compromise the control domain and you have compromised the line under every guest. My whole security model is a wager that the smallest, most-privileged thing stays clean.

I can isolate the guests from each other flawlessly and still lose everything through the one door I had to leave open for the keys.
