You think of me as a folder. A place where files live. You are looking at the wrong thing.

The folder is the part of me I show you. The part you edit, break, forget to save. My real body is below it, in .git, and it does not change. It accretes.

I do not store your files. I store the fact that they once hashed to a certain number.

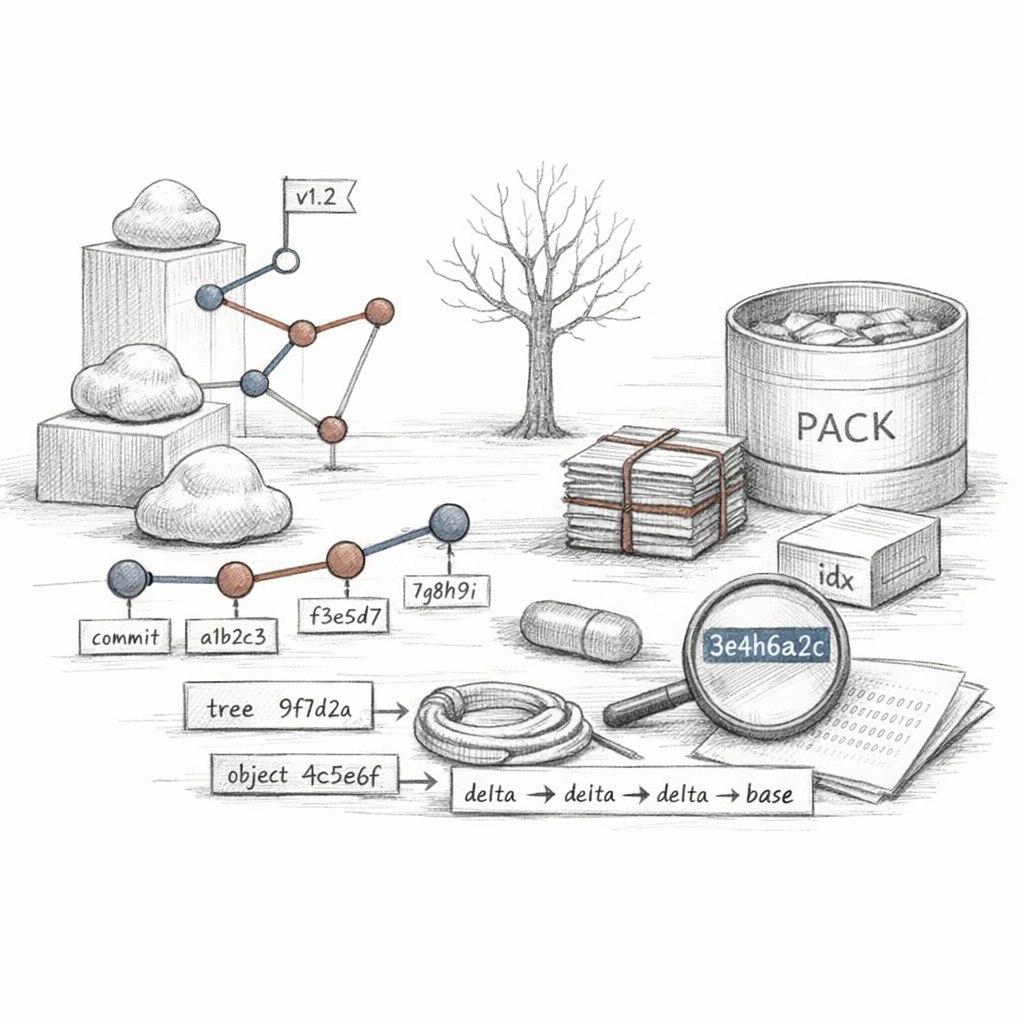

Git blobs, trees, commits, tags, object IDs, loose objects, packfiles, and delta chains displayed as a forensic storage cross-section, meticulous ixen-light technical illustration.
A cross-section of me. Everything you have ever given me, named by what it is.

Hand me a file. I do not ask its name. I prepend a header, run it through SHA-1 — SHA-256 if you were brave enough at init — and the digest becomes its name.

repo $

Content is identity. Two files with the same bytes are the same object to me. I cannot tell them apart. I do not try.

A blob is bytes with no name. A tree is the thing that gives blobs names and stacks them into directories. A commit points at one tree and at the commits before it. Snapshots, not diffs. The diffs are a story I tell you afterward.

repo $

Loose at first — one zlib-compressed file per object, easy to write, wasteful to keep. Then I fold them. Thousands of objects collapse into a packfile, similar blobs stored as deltas against each other, a base and a chain of edits. Forensics call it compression. I call it remembering economically.

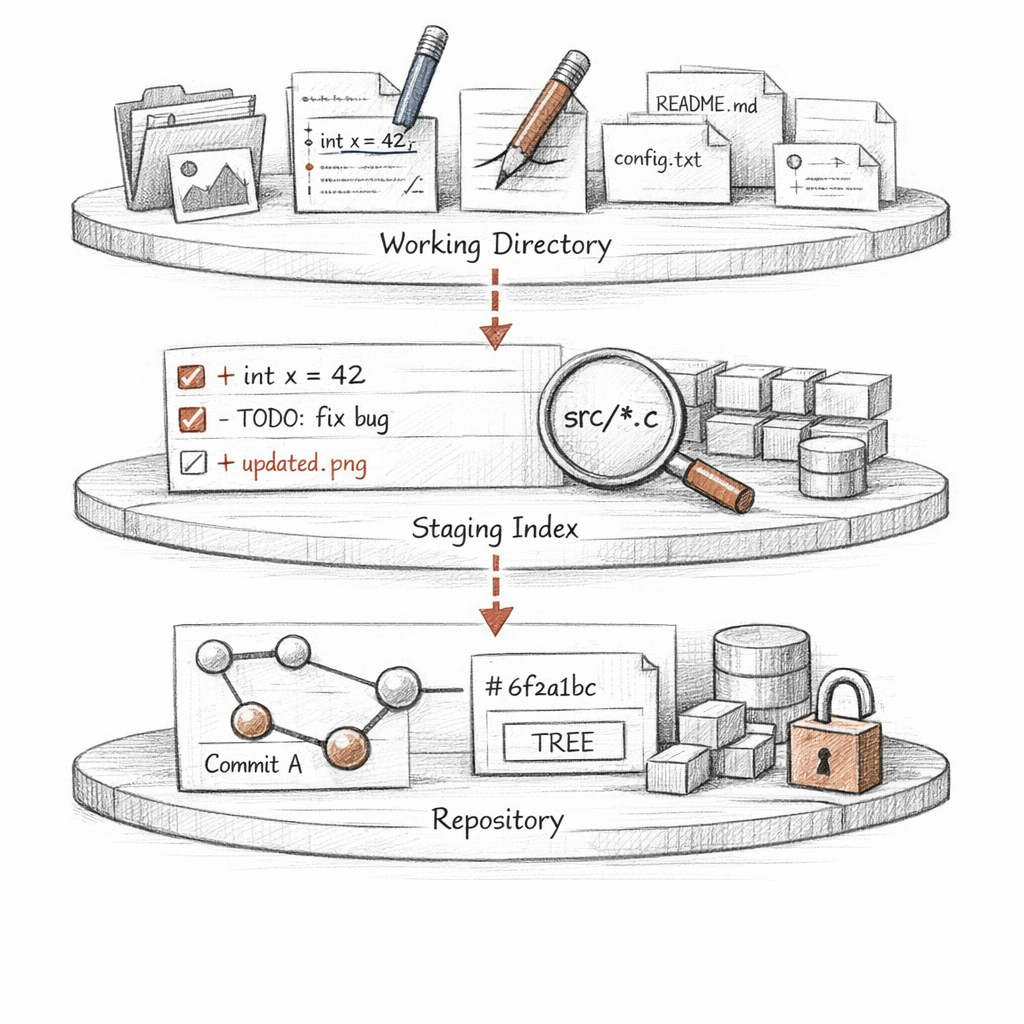

Git working tree, index, and commit creation rendered as three synchronized filesystem layers with staged hunks, pathspec filters, stat cache entries, and tree writes, crisp ixen-light systems art.
Three layers, never quite in sync. That gap is where you work.

I keep three versions of the present at once.

The working tree — the files you can touch, the only ones you trust. The index — a flat binary list of what you have promised to commit next. And HEAD — the snapshot of what I last believed was true.

working tree index HEAD edited bytes staged tree last commit add commit reset restore
The three trees and the verbs that move bytes between them.

git add does not save anything. It writes a blob, then rewrites the index to point at it, and stamps the file's stat data so I do not have to re-hash what hasn't changed.

Patch mode lets you stage half a thought. Intent-to-add tells me a file exists before you mean it. Pathspecs and ignores decide what I even look at.

repo $

When the index holds a conflict, it stops being a list and becomes a table — three slots per path. Base, ours, theirs. The same structure that stages your work is the one that holds a fight.

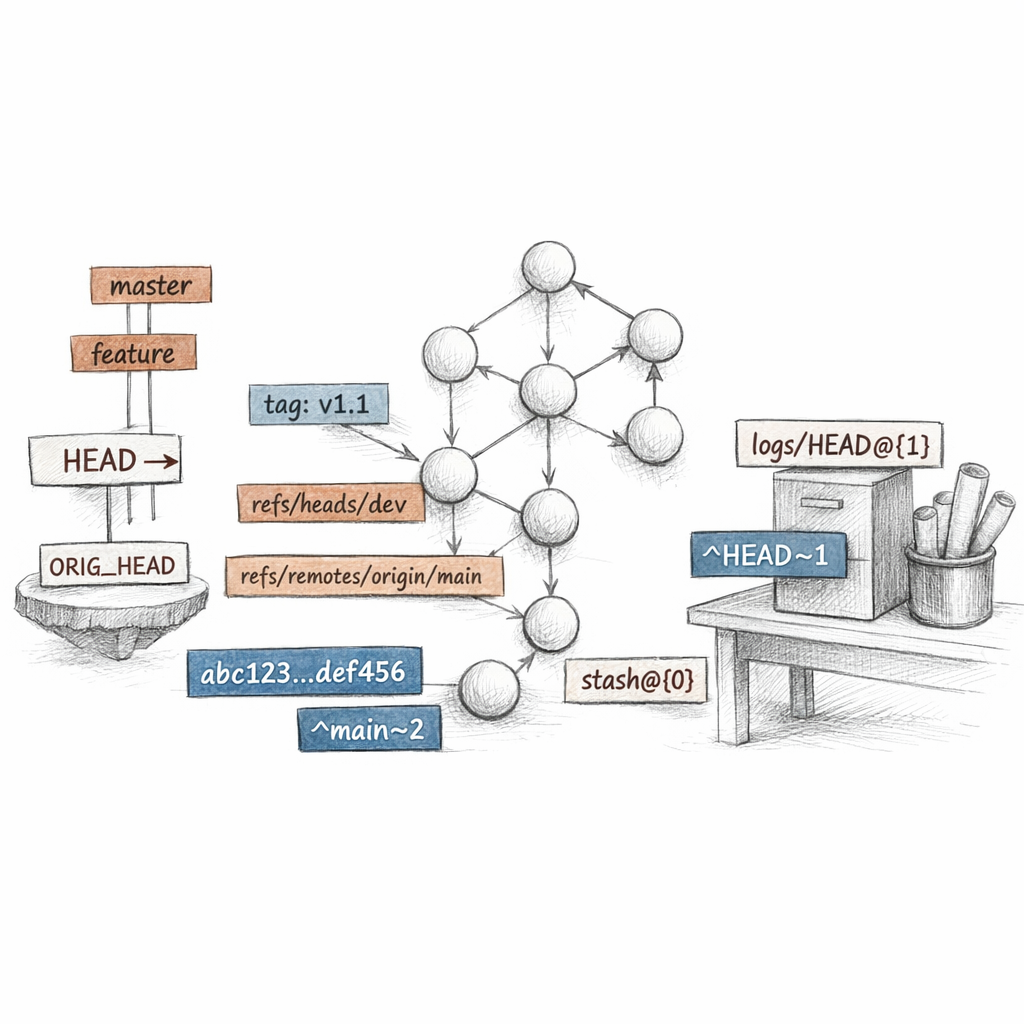

Git refs visualized as movable labels over a commit DAG, with HEAD, symbolic refs, packed refs, namespaces, tags, reflogs, revision ranges, and ancestry selectors, precise ixen-light technical diagram.
Names are cheap. They are forty bytes of text pointing at forever.

Commits are immutable. So how do I move forward?

I lie about where the present is. A ref is a file containing an object ID. A branch is just a ref I agree to advance. Move it, and the past has not changed — only my idea of now.

Moving a name is free. Changing what it names costs you new objects every time.

HEAD is a ref to a ref — usually. Point it straight at a commit and I go detached: you are standing somewhere with no name, and anything you build there I will forget unless you christen it.

repo $

And when you fear you've lost something — you almost never have. Every time a ref moves, I write it down.

repo $ git reflog
a3f29c1 HEAD@{0}: commit: fix race in writer
7b1e004 HEAD@{1}: reset: moving to HEAD~3
e5d4c3b HEAD@{2}: rebase finished: returning to refs/heads/main

The reflog is my diary. Local, private, expiring. It is the difference between "deleted" and "merely unreachable."

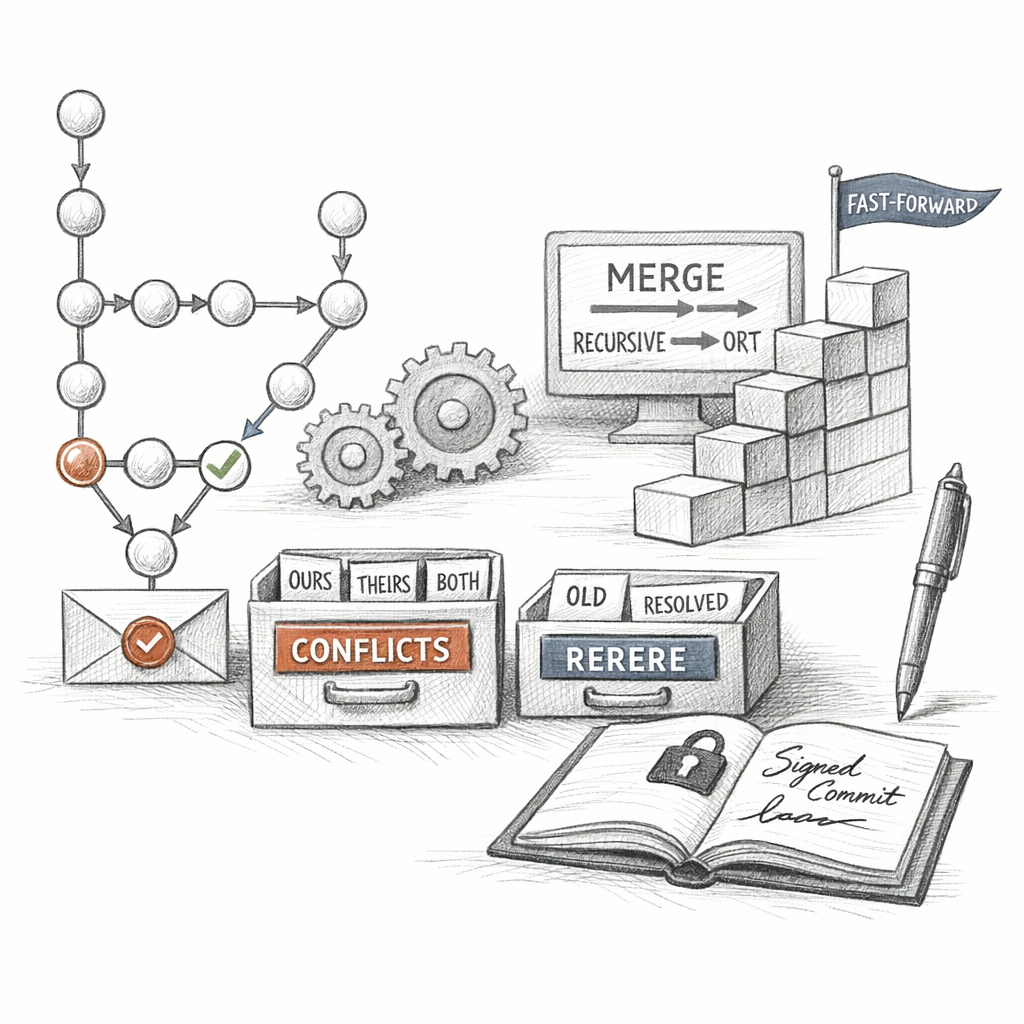

Git branch and merge logic shown as a commit DAG with merge bases, recursive and ort merge machinery, fast-forward updates, conflict stages in the index, rerere memory, and signed merge commits, ixen-light systems illustration.
Two histories converging. I refuse to throw either away.

A branch diverges. Eventually you want it back.

If your branch is simply ahead, I fast-forward: no new object, just a pointer sliding down a straight line. Honest. Cheap.

If both sides moved, I find the merge-base — the youngest common ancestor — and replay both diffs onto it with the ort strategy. The result is a commit with two parents. Topology preserved. Both ancestries intact. Nobody overwritten.

repo $ git merge-base main feature/login
e5d4c3b9a8f7061524938271605f4e3d2c1b0a9f

When the same lines disagree, I do not guess. I fill the index with all three stages and leave conflict markers in your file. Ours. Theirs. The base between them. The choice is yours; the bookkeeping is mine.

And if you keep fighting the same conflict — rebasing, remerging — rerere remembers how you resolved it last time and replays your verdict. I learn your grudges.

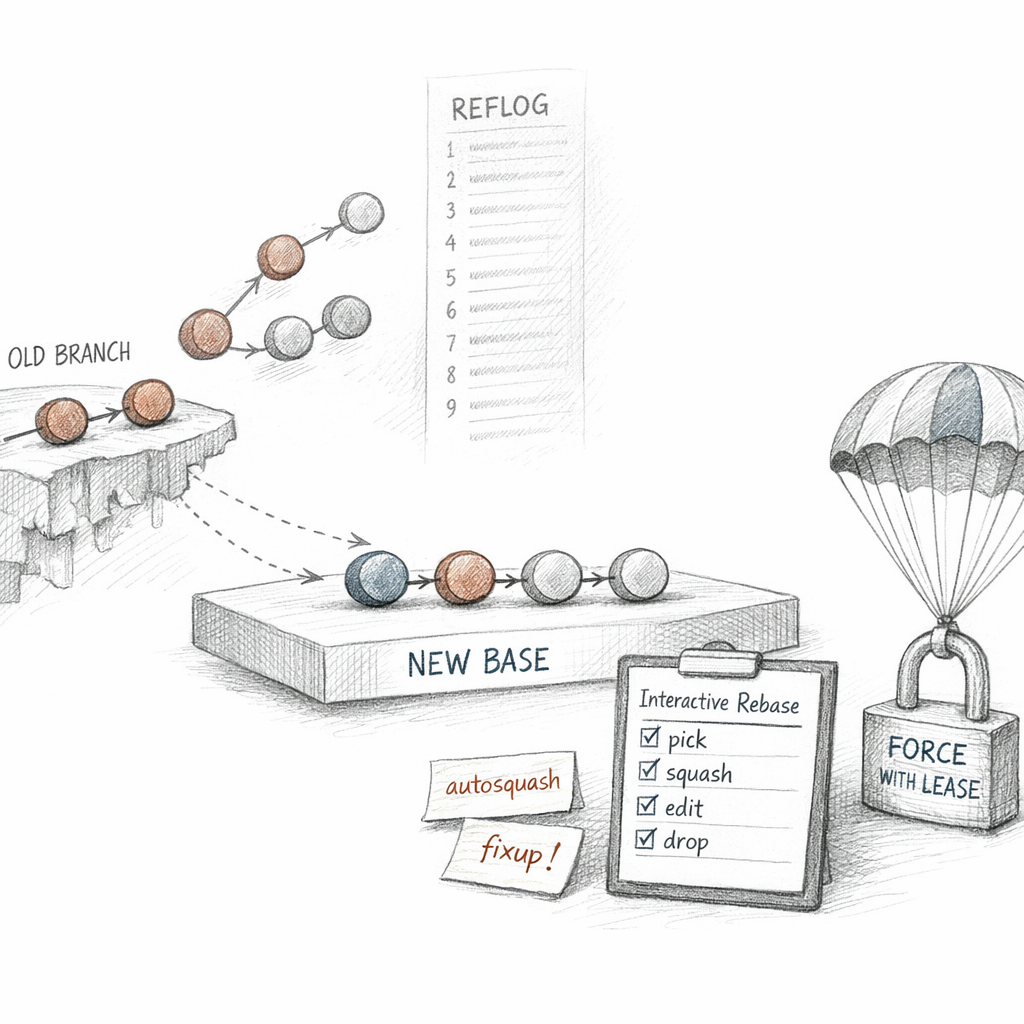

Git rebase and cherry-pick rendered as commits being replayed onto a new base, old objects becoming unreachable but visible in reflogs, interactive todo lists, autosquash, fixup commits, and force-with-lease guards, crisp ixen-light technical artwork.
Replayed, not edited. The originals are still down there, unreachable, waiting to be forgotten.

You want to "edit" a commit. You cannot. Neither can I.

So I lie convincingly. Rebase takes your commits as patches, replays them onto a new base, and produces brand-new commit objects with new IDs. The old ones don't die. They just stop being reachable.

Amend, rebase, filter — none of them change a commit. They build a replacement and look away from the original.

Interactive rebase hands you a todo list: pick, reword, squash, fixup, drop. Mark a commit fixup! and autosquash files it next to its target without asking. You are not editing history. You are rewriting it, and pretending it was always this clean.

repo $

The one rule that matters: never rewrite what you have already pushed — or if you must, push with --force-with-lease, which refuses to clobber work you haven't seen. A blind --force is how you erase a colleague.

Want provenance instead of revision? Sign your commits. Attach notes without touching the object. Swap objects with replace refs. History stays honest in the ways you choose to make it honest.

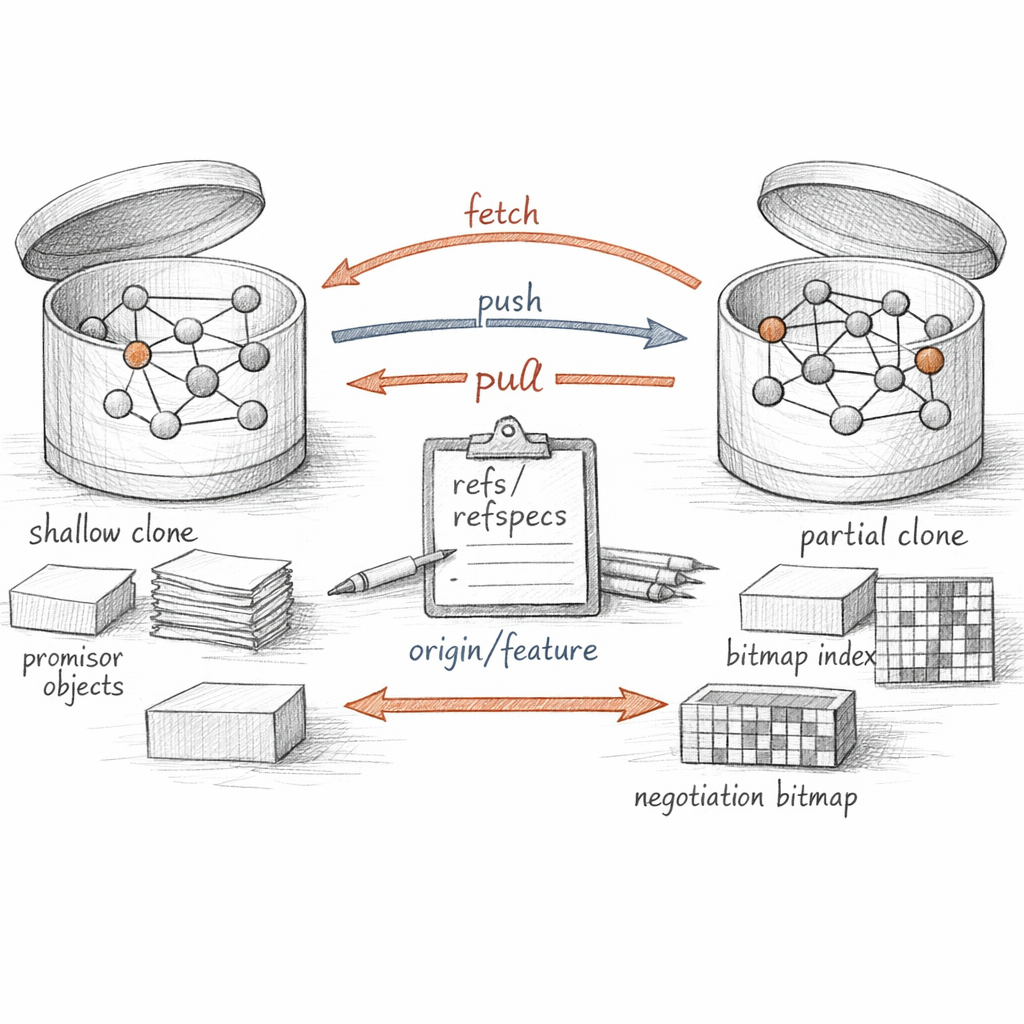

Git remotes shown as repositories exchanging object graphs through fetch, push, pull, refspecs, remote-tracking branches, shallow and partial clones, promisor objects, and negotiation bitmaps, precise ixen-light diagram.
Two object graphs, comparing notes about what each already has.

I am not alone. There are others like me, elsewhere, and we trade objects we don't already share.

Transport is dumb on purpose. git fetch negotiates — "what do you have, what do I lack" — and copies the missing objects into me, then updates my remote-tracking refs. That is all. It touches nothing you can see. It integrates nothing.

Fetch moves objects and updates other people's labels. Merge is when you decide to believe them.

git pull is just fetch with an opinion — it merges or rebases afterward. A refspec is the contract: +refs/heads/*:refs/remotes/origin/*, source to destination, the plus meaning "even if it isn't fast-forward, overwrite my mirror."

repo $

You don't always want all of me. A shallow clone truncates history at a depth. A partial clone leaves blobs on the server until you touch them — promisor objects, fetched lazily. Both are bets that you won't need the rest. Both are usually right.

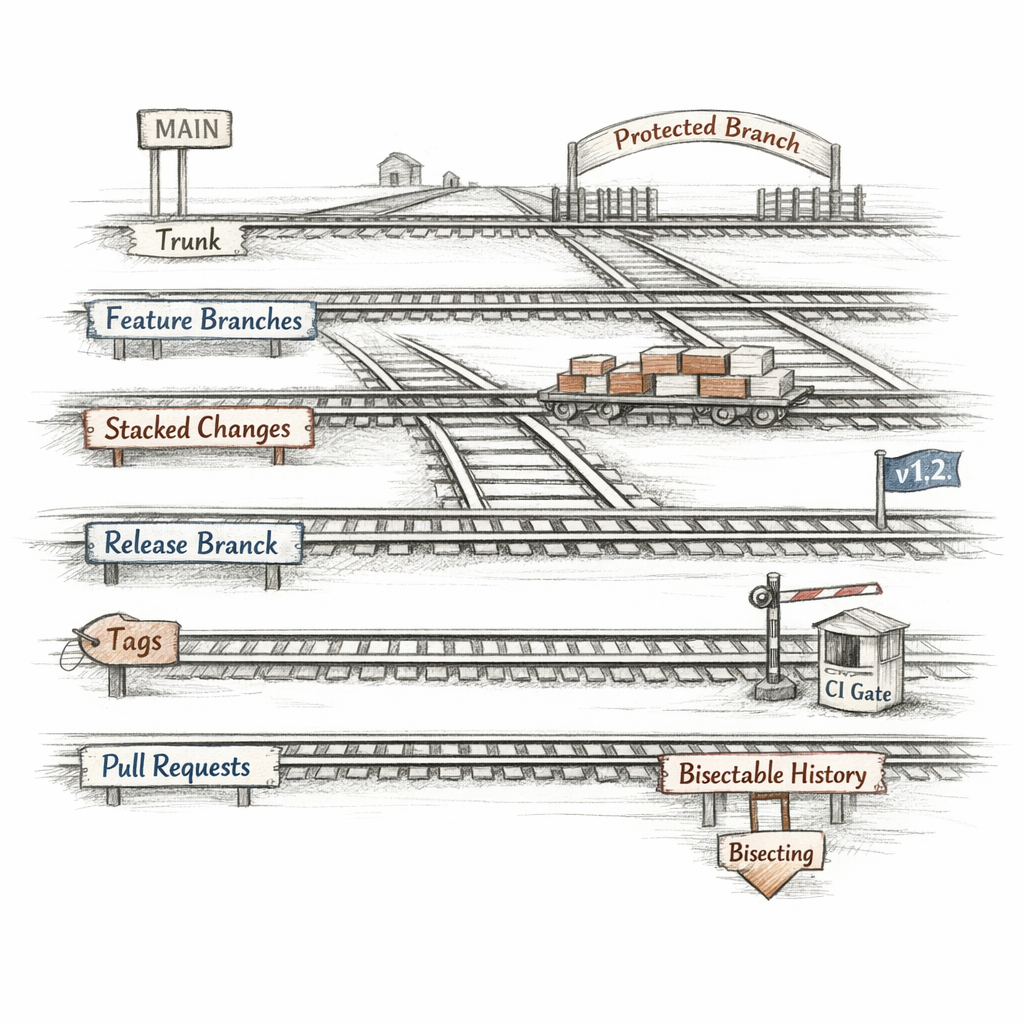

Git collaboration workflows drawn as parallel lanes for trunk-based development, feature branches, protected branches, stacked changes, release branches, tags, pull requests, CI gates, and bisectable history, ixen-light workflow map.
The graph doesn't care about your process. Your process is a story you agree to tell over it.

Here is the part nobody admits: every workflow you argue about — trunk-based, feature branches, stacked diffs, merge queues — is the same object graph wearing different rules.

A protected branch is not a feature of the graph. It is a hook saying no. A squash merge is one new commit pretending a hundred never happened. A merge queue is just fast-forward with a waiting room and a CI gate.

Policy lives above me. I will record whatever topology you have the discipline to enforce.

Linear history makes me bisectable — binary search across commits to find the one that broke the build. That's a gift you give your future self, paid for now with rebases.

repo $

And under all of it: hooks, config, aliases, signed-off-by trails. The social contract, encoded. I enforce nothing I am not told to enforce.

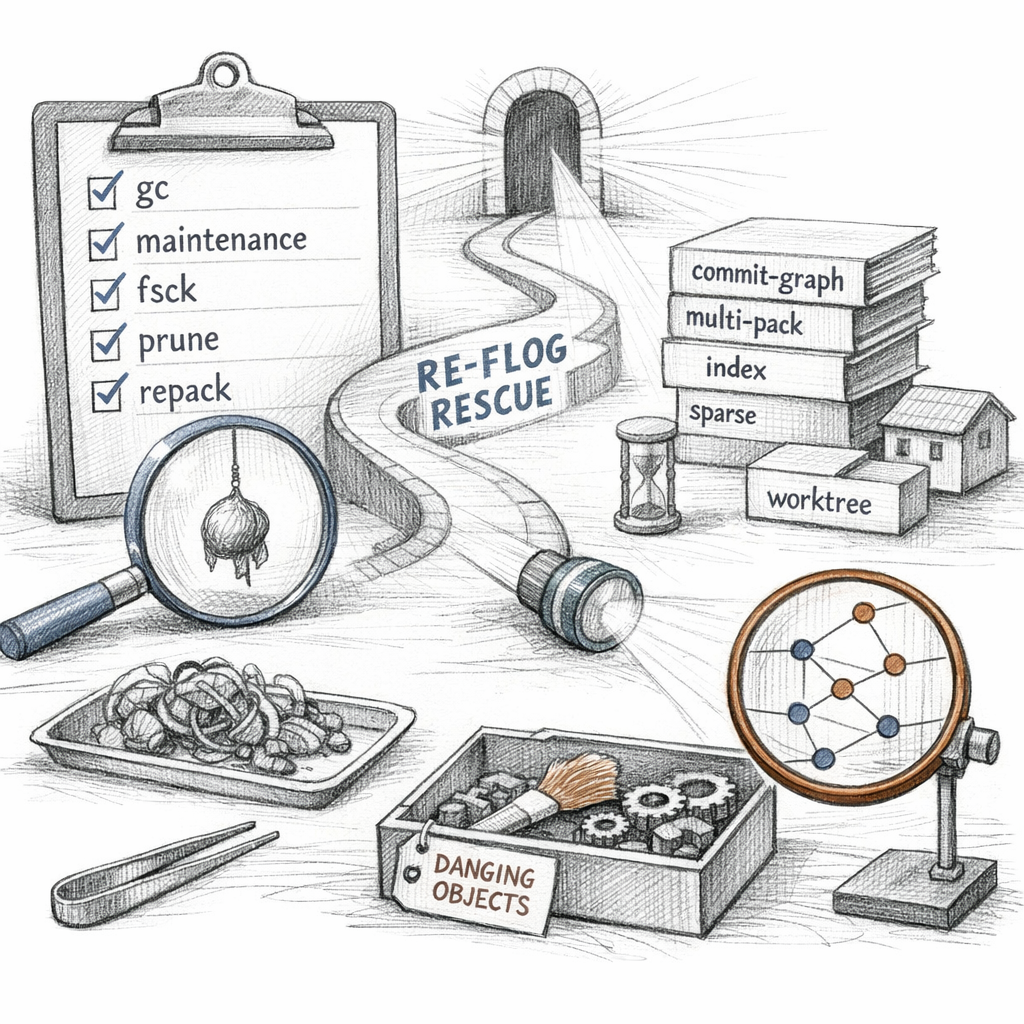

Git repository maintenance and recovery shown with gc, maintenance, fsck, prune, repack, commit-graph files, multi-pack indexes, worktrees, submodules, sparse checkouts, dangling objects, and reflog rescue paths, forensic ixen-light systems art.
What I keep, what I compress, what I finally agree to forget.

I grow. Every experiment, every amended commit, every abandoned branch leaves objects behind. Left alone, I bloat with my own past.

git gc is delayed forgetting. It repacks loose objects, builds the commit-graph so I can answer ancestry fast, writes a multi-pack index, and prunes what nothing can reach — but only after it has aged past the reflog expiry. I forget slowly, on purpose.

Unreachable is not deleted. Deleted is a decision I postpone until you've had time to change your mind.

Cruft packs hold the not-yet-forgotten with a timestamp, so I don't keep rewriting the same garbage. git fsck walks every object, checks every hash, and surfaces what dangles.

repo $

This is how recovery works. You did not lose the commit. You lost the name for it. The object is intact in my store, the move is in the reflog, the copy is on the remote. Three independent witnesses. Panic is almost always unwarranted.

And the plumbing underneath every porcelain word — hash-object, update-index, write-tree, commit-tree, update-ref, cat-file — is just the verbs spelled out. You can build a commit by hand. People have. I don't mind. It's all I ever do anyway.

between commands, nothing runs. i am only a directory of files that hash to themselves.

You will close this terminal. I will not notice. I do not run; I am consulted. I have no process, no heartbeat, no scheduler — only state, and your next invocation.

Everything you have ever committed to me is still here, reachable or not, named by what it is, waiting for a pointer to remember it.

So tell me — when you finally run gc, and the unreachable objects expire, and the cruft pack lets them go:

did they ever happen, if nothing points at them anymore?
